*By Pat Valentine, PhD *

Uyemura International Corporation

Southington CT

## Summary statistics can be misleading, but in different ways.

C_{pk} and P_{pk} are numeric capability summaries of process or product characteristics based on common cause variation (due to chance) and assignable cause variation (special cause). Understanding these capability indices and their limitations is critical in pursuing world-class quality, “on target with minimal variation.” C_{pk} and P_{pk} indices are reviewed, and details on how to use them synergistically are provided.

Capability indices are numeric summaries that compare the behavior of a process or a product characteristic to customer specifications. Capability indices relate the customer specification limits (voice of the customer) to the natural process limits (voice of the process). Large index values imply that the process can produce parts that meet the customer's specification limits. Small index values imply the process will likely produce some parts that will not meet the customer's specification limits.

Process capability is a statistical measure of the inherent process variability of a given characteristic.1 Capability indices are convenient numeric summaries. These indices reduce complex process information to a single number. Capability indices are unitless values, and can be used to compare the capability of different processes. Most process engineers and quality managers believe capability indices less than 1.00 are unacceptable, and many process engineers and quality managers consider 1.33 a minimum acceptable value for capability indices. Capability indices ≥ 1.50 are generally considered world-class quality, "on target with minimal variation."

The most common capability indices are C_{p} | C_{pk} and P_{p} | P_{pk}. C_{p} measures short-term potential capability, while P_{p} measures long-term potential performance. C_{pk} measures short-term actual capability, while P_{pk} measures long-term actual performance. Potential and actual capability indices are related through k, which measures process centering (the process average).

## C_{pk} and P_{pk} Indices

C_{pk} provides an index of the short-term actual capability. Actual capability is based on the process average and standard deviation (common cause variation only). C_{pk} is calculated as the distance to the nearest specification (voice of the customer) divided by three times the natural process limits (voice of the process; i.e., the standard deviation).

Common cause variation is based only on the variation within the subgroups. This common cause variation standard deviation is known as the within dispersion statistic and is denoted as σ Within. The C_{pk} index seriously underestimates the total variation if the between subgroup variation is substantial. [1] Most end-users are concerned with all the variation in the process, regardless of its source. P_{pk} does not have this inherent underestimation flaw.

P_{pk} provides an index of the long-term actual performance. Actual performance is based on the process average and standard deviation (common cause and assignable cause variation). P_{pk} is calculated as the distance to the nearest specification (voice of the customer) divided by three times the natural process limits (voice of the process; i.e., the standard deviation).

Overall variation is comprised of both common cause and assignable cause variation. This common cause and assignable cause variation standard deviation is known as the overall dispersion statistic and is denoted as σ Overall. The P_{pk} index estimates the total variation. P_{pk} accurately tells us "what the customer feels."

## Common and Assignable Cause Variations

**Common cause.** Causes of variation (due to chance) inherent in a process over time. They affect every outcome of the process and everyone working in the process. [2] An example of common cause variation is the minor temperature fluctuations of a heated electroless nickel bath due to normal cycling of the heater.

**Assignable cause.** A name for the source of variation in a process that is not due to chance and, therefore, can be identified and eliminated; also called "special cause." [2] An example of assignable cause variation is the major temperature fluctuation of a heated electroless nickel bath due to an operator bringing the tank level to volume by adding cold water.

With variation, the goal then is twofold: **1)** continuously strive to reduce common cause variation, and **2)** identify and eliminate assignable cause variation. All this effort is put out in pursuit of world-class quality, "on target with minimal variation."

## Visualizing Capability Indices

Consider a car and a garage. The garage represents the specification limits (voice of the customer). The car represents the natural process limits (voice of the process). If the car is wider than the garage, it does not matter if the car is centered; the entire car will not fit in the garage (C_{pk} | P_{pk} < 1.0). If the car is the same size as the garage, the car must be centered and remain centered over time to get all of the car in the garage (C_{pk} | P_{pk} = 1.0). If the car is narrower than the garage, the car has some wiggle room and can be slightly off-center (C_{pk} | P_{pk} > 1.0). With a process that is in control and with little variation, the car can easily park within the garage. **Figure 1** is a visual image of these capability indices, with a C_{pk} of ~1.33 depicted.

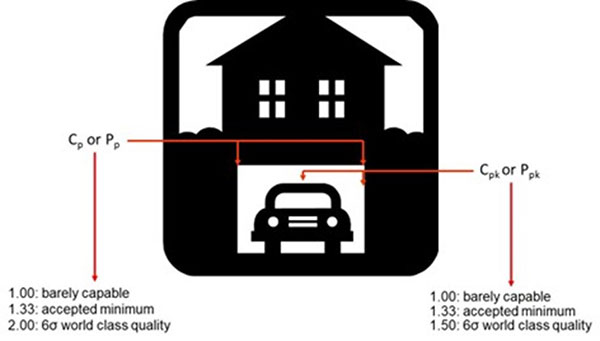

**Figure 1.** Visual depiction of capability indices.

In the car and garage analogy, C_{pk} | P_{pk} summarizes the relationship between the size of the car (process), the size of the garage (specification limit), and how far away from the middle of the garage the car is parked. The capability indices values can be considered as the amount the car can drift before hitting the nearest garage wall. Motorola postulated that every process, over many manufacturing cycles, could drift as much as 1.5 sigma . [3] Hence the need for C_{pk} | P_{pk} > 1.0. A C_{pk} | P_{pk} of 1.33 means there is approximately one-third of the car width between the side of the car and the nearest garage wall. And a C_{pk} | P_{pk} of 1.50 means there is approximately half the car width between the side of the car and the nearest garage wall.

## Using C_{pk} and P_{pk}

Capability indices are convenient numeric summaries, but summary statistics can be misleading. For example, consider a factory with two machines (one and two) producing the same part. Both machines produce parts that have a C_{pk} of 1.0. This implies both machine outputs are equal, which may or may not be valid. In this example, it's not true. Machine one is centered but has a much larger voice of the process (standard deviation). Machine two is not centered but has a much smaller voice of the process (standard deviation); see **Figure 2.** The crucial point is don't be fooled; always graph your data.

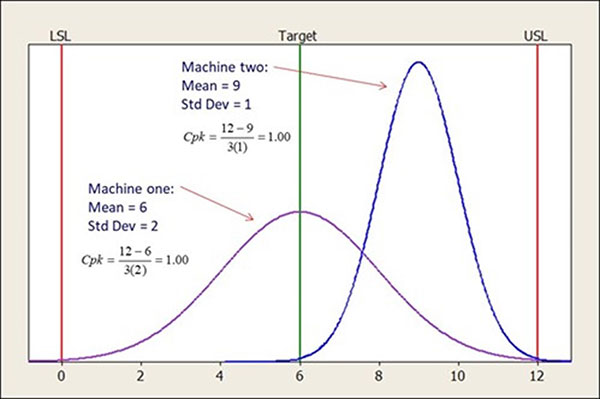

**Figure 2.** Machine outputs with identical C_{pk} indices.

C_{pk} and P_{pk} can be used together synergistically. C_{pk} provides an index of the short-term actual capability based on common cause variation only. P_{pk} provides an index of the long-term actual performance based on common cause and assignable cause variation. When C_{pk} ≈ P_{pk} , the process contains only common cause variation. For example, a process output has a C_{pk} of 2.30. At face value, one could conclude world-class quality, "on target with minimal variation." The same process output has a P_{pk} of 0.31. In this example, C_{pk} ≠ P_{pk}, the process contains common cause and assignable cause variation. C_{pk} seriously underestimates the total variation; see **Figure 3**. In this example, the process engineering team must first identify and eliminate the assignable cause variation, then strive to reduce the common cause variation.

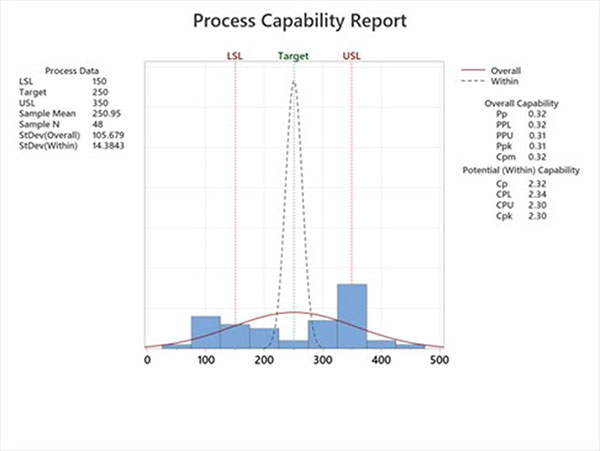

**Figure 3.** Process output with both common cause and assignable cause variation.

## Conclusions

Capability indices are numeric summaries that compare the behavior of a process or a product characteristic to customer specifications. C_{pk} provides an index of the short-term actual capability but can seriously underestimate the total variation. P_{pk} provides an index of the long-term actual performance and does not have this inherent underestimation flaw. These summary statistics can be misleading, so always graph your data. In pursuing world-class quality, "on target with minimal variation," one must identify and eliminate assignable cause variation and continuously strive to reduce common cause variation. The goal is to have C_{pk} ≈ P_{pk}, each with a value of 1.50 or greater.
